2BV Water Ring Vacuum Pump
2BV Water Ring Vacuum Pump The 2BV water ring vacuum pump is a single-stage coaxial pump. The shaft seal adopts mechanical seal, which has the characteristics of simple structure, simple installation, no oil, safety and reliability. 2BV water ring vacu
Product Details
2BV Water Ring Vacuum Pump
The 2BV water ring vacuum pump is a single-stage coaxial pump. The shaft seal adopts mechanical seal, which has the characteristics of simple structure, simple installation, no oil, safety and reliability.
2BV water ring vacuum pump is widely used in petroleum, chemical, pharmaceutical, food, sugar industry and other fields. Because the compression process of gas is isothermal in the working process, it is not easy to explode when compressing and sucking inflammable and explosive gas, so it is more widely used.

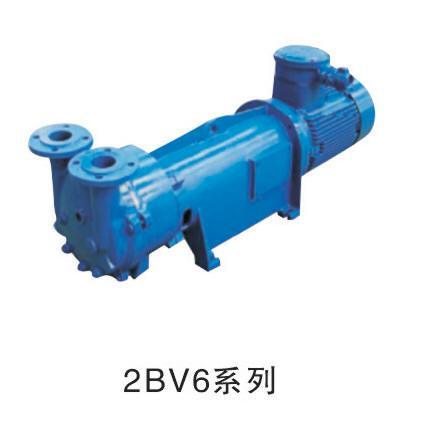

The 2BV6 series water ring vacuum pump is a product of 2BV series. The compressor is mainly used to extract explosive gases and work in various flammable and explosive environments. Its performance parameters are the same as those of 2BV2 2BV5 series.
Pump head material is divided into cast iron and stainless steel, impeller is divided into aluminum bronze and stainless steel, motor is divided into ordinary motor and riot-proof motor, suitable for use in different environments.
|
Model |
Motor power
KW |
Maximum air volume
m³/h |
Working water flow
m³/h |
Extreme vacuum
Mpa |
Speed
r.p.m |
|
2BV2 060 |
0.81 |
27 |
0.12 |
-0.097 |
2830 |
|
2BV2 061 |
1.45 |
52 |
0.12 |
-0.097 |
2840 |
|
2BV2 070 |
2.35 |
80 |
0.15 |
-0.097 |
2880 |
|
2BV2 071 |
3.85 |
110 |
0.25 |
-0.097 |
2890 |
|
2BV5 110 |
4 |
165 |
0.4 |
-0.097 |
1440 |
|
2BV5 111 |
5.5 |
230 |
0.5 |
-0.097 |
1440 |
|
2BV5 121 |
7.5 |
280 |
0.6 |
-0.097 |
1440 |
|
2BV5 131 |
11 |
400 |
0.9 |
-0.097 |
1460 |
|
2BV5 161 |
15 |
500 |
1.2 |
-0.097 |
970 |
